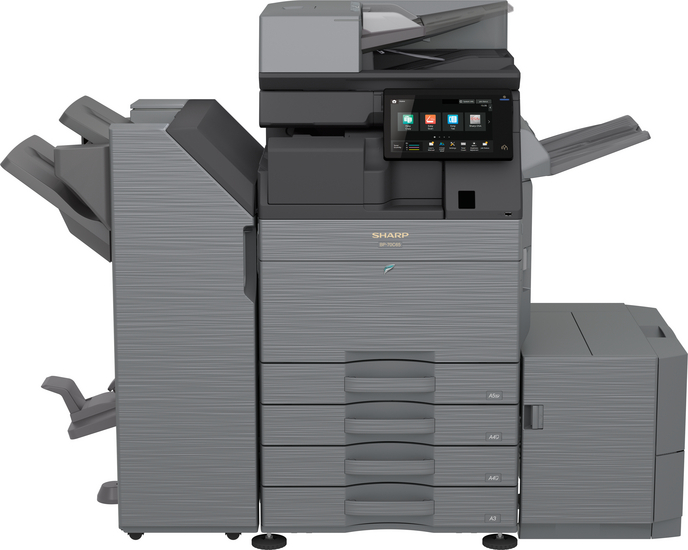

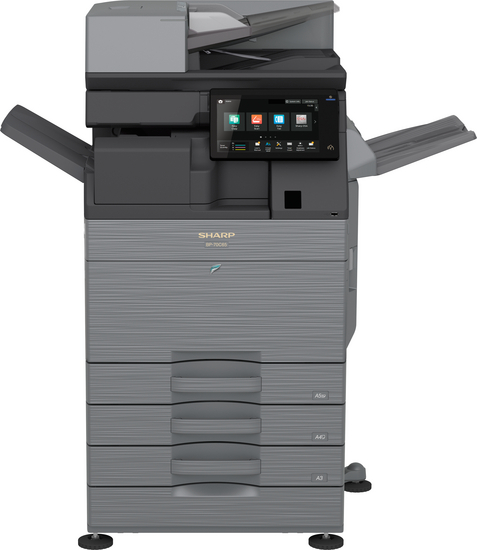

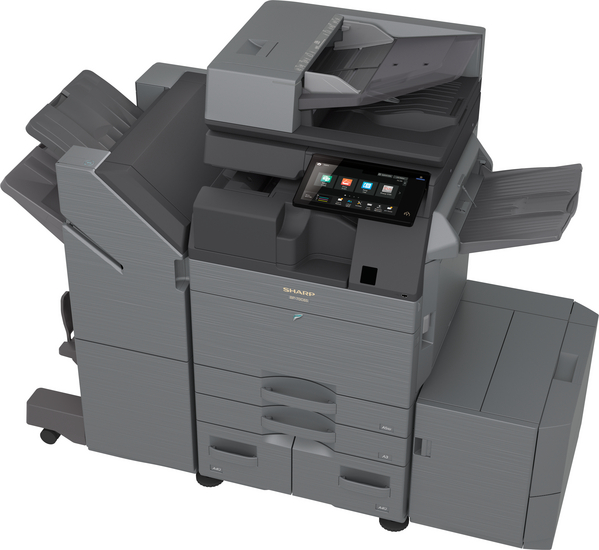

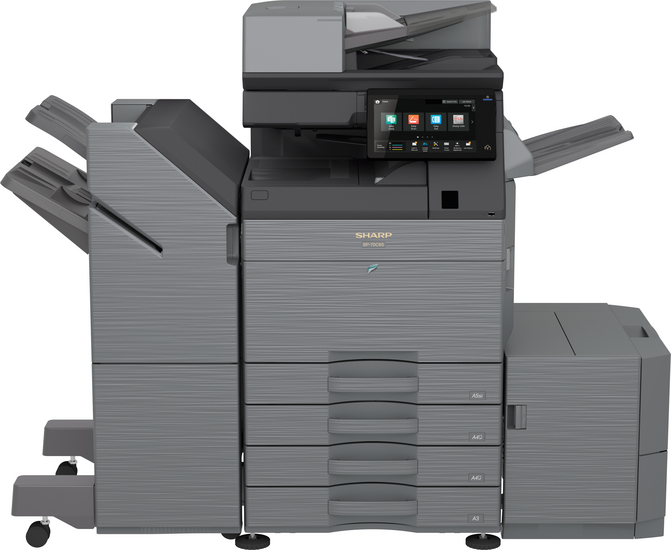

Sharp BP-70C65

The BP-70C65 A3 colour MFP is a secure print solution for the future workplace. It delivers effortless connectivity, security and sustainability whilst offering superior functionality to facilitate hybrid working.

Key features

  • Print, Copy, Scan, Fax, File
  • Pages per minute: 65 B/W 65 Colour
  • Paper capacity: Std 650 Max 6,300 sheets
  • Seamless integration and connection to cloud based business process applications
  • Hardware and solutions platform that supports the hybrid working environment
  • Built-in Microsoft® Teams connector strengthens collaboration by enabling direct and secure access for printing from or scanning to your Microsoft® Teams channel
  • Industry leading system and data protection features including BIOS based security, anti-malware (optional) and standard Trusted Platform Module ensure that confidential data is kept secure
  • Interact with the MFP directly from your mobile device via WiFi, AirPrint, Bluetooth, NFC and QR Code
Description

Description

    The BP-70C65 A3 colour MFP is a secure print solution for the future workplace. It delivers effortless connectivity, security and sustainability whilst offering superior functionality to facilitate hybrid working.
    Effortless Connectivity
    The built-in Microsoft® Teams connector strengthens teamwork and collaboration by providing direct and secure access for printing to or scanning from Microsoft® Teams channels, all from the MFP. The Synappx Go mobile app also enables contactless and remote printing, aligning print capabilities with the new demands of hybrid working. With single sign-on, users can seamlessly connect their mobile devices via WiFi, AirPrint, Bluetooth, NFC or QR code to enterprise workflows and print capabilities – from wherever they are working.
    Effortless Security
    The BP-70C65 comes with a range of industry leading system and data protection features which not only protect the device but also the data it processes. Features such as BIOS based security, whitelisting, self-recovery firmware and standard Trusted Platform Module means that users can be confident that their sensitive data and documents are always kept safe and secure. In addition optional anti-malware software from Bitdefender can add an additional layer of reassurance that your device, data and network is protected
    Effortless Operation
    A motion sensor detects approaching users wakening the MFP from Sleep mode and the communication lamps provide an at-a-glance status view. Intuitive icons on the new 10.1” tiltable colour LCD operation panel make it easy to access and all of the productivity enhancing functions using smartphone style touch capability.
    Effortless Productivity
    The BP-70C65 can print and copy at speeds of up to 65 ppm in colour and black & white and you can replace toner and paper without pausing the print or copy job, so your productivity won’t miss a beat.

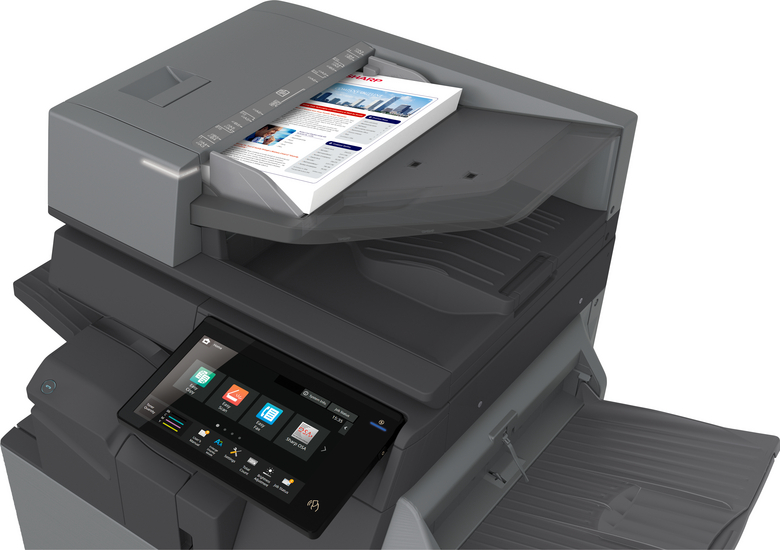

    The built-in Duplex Single Pass Feeder can scan two-sided documents at speeds of up to 280 ipm in batches of up to 300 sheets, making it quick to finish even large jobs. There’s even an option for eliminating double feeding of paper when scanning and an alert LED to remind users to remove their originals when they’re done, helping to keep documents secure. The BP-70C65 also uses AI (Artificial Intelligence) to determine the optimal resolution, gradation and compression rates for all scan jobs.

    The standard Print Release function allows users to securely release their print jobs from the most conveniently located MFP, from up to 100 connected network-ready devices, and a variety of extensive finishing options including a folding unit, saddle stitching, manual and stapleless stapling add further versatility and bring more flexibility to your output.

    The Sharp Application Portal facilitates remote firmware and application updates which ensures that the MFP is always kept up-to-date and compliant.
    Effortless Sustainability
    Superior environmental performance delivers lower power consumption and a low TEC value and ensures that the BP-70C65 complies with energy consumption regulations. A comprehensive range of eco-focused functions including eco-scan together with a rapid warm up time all help to save money and support environmental objectives.

    The principles of the circular economy have been applied to the production of the BP-70C65 to minimise its carbon footprint and to maximise the recyclability of all components by eliminating harmful materials in operational processes and extending the life of key component parts to reduce the number of service visits.

    Specifications

    General

    Engine speed Colour ppm (A4) 65
    Engine speed B/W ppm (A4) 65
    Engine speed Colour ppm (A3) 29
    Engine speed B/W ppm (A3) 29
    Paper size: Min.-Max. A6R – SRA3
    Paper weight (g/m2) 55 – 300
    Paper capacity:Std (sheets) 650
    Paper capacity: Max. (sheets) 6300
    Warm Up Time (sec.) 15
    Memory general min/max (GB) 5
    SSD STD / OPT
    SSD Capacity (GB) 256 / 512
    Duplex STD
    Power requirements – rated local AC voltage (Hz) 200 – 240V, 50/60Hz
    Power consumption (kW) 1.84
    Dimensions (mm) 609 x 662 x 860
    Weight (kg) 86

    Copier

    Original paper size (Max.) A3
    First copy out time Colour (sec.) 4.8
    First copy out time B/W (sec.) 3.7
    E-sort Std yes
    E-sort Opt. no
    Continuous copy (Max. copies) 9,999
    Resolution Scan B/W (dpi) 600 x 600, 600 x 400, 600 x 300
    Resolution Scan Colour (dpi) 600 x 600
    Resolution Print (dpi) 1200 x 1200, 600 x 600, 9600 x 600
    Gradation (equivalent levels) – Colour 256
    Zoom range (%) 25 – 400
    Preset copy ratios 10

    Document Feeder

    Original capacity (sheets) 300

    Scanner

    Network Scanner (Standard / Option) STD
    Scan method Push scan and Pull scan yes
    Resolution push scan (dpi) 100, 150, 200, 300, 400, 600
    Resolution pull scan (dpi) 75, 100, 150, 200, 300, 400, 600, 50 – 9600
    File formats TIFF, PDF, PDF / A-1a, PDF / A-1b, encrypted PDF, compact PDF, JPEG, XPS, searchable PDF, Microsoft Office (pptx, xlsx, docx), TXT (UTF-8), RTF
    Scan destinations Desktop yes
    Scan destination FTP, Email yes
    Scan destination Network folder yes
    Scan destination USB memory yes

    Document filing

    Document filing (Standard / Option) STD
    Document filing capacity- main and custom folders (pages) 20000
    Document filing capacity- quick file folder (pages) 10000
    Stored jobs Copy, print, scan, fax transmission
    Storage folders Quick file folder, main folder, custom folder (max. 1000)
    Confidential storage no

    Printer

    Resolution (dpi) 1200 x 1200, 600 x 600, 9600 x 600
    Network Printer (Standard / Option) STD Ethernet
    Interface Std/Opt USB 2.0, USB 3.0, 10Base-T/100Base-TX/1000Base-T, Optional secondary LAN support
    Supported OS Standard Windows 8.1, 10, 11. Windows Server 2012, 2012R2, 2016, 2019. Mac OS X 10.10, 10.11, 10.12, 10.13, 10.14, 10.15, 11, 12
    Network protocols TCP / IP (IPv4, IPv6)
    Printing protocols LPR, Raw TCP (port 9100), POP3 (e-mail printing), HTTP, FTP for downloading print files, IPP, SMB, WSD
    PDL Std/Opt STD PCL 6, Adobe® PostScript® 3™
    Available fonts 80 (PCL), 139 (Adobe PostScript 3)

    Fax

    Fax (Standard / Option) OPT
    Compression method MH/MR/MMR/JBIG
    Communication protocol Super G3/G3
    Transmission time (sec) 2
    Modem Speed (bps) 33600 – 2400
    Transmission resolution STD 203.2 x 97.8 dpi / Ultra Fine 406.4 x 391 dpi
    Document Size (Min) A5
    Document Size (Max) A3
    Memory (GB) 4
    Grey Scale levels 256
    Dial Registration; rapid/speed dial 2000
    Broadcast Transmission (max. destinations) 500

    Finishing

    Output Capacity Max. 500 – 3000
    Staple Capacity (sheets) Max. 65
    Saddle Stitch OPT
    Off-set shifting STD
    Hole punch OPT

    Wireless LAN

    Wireless LAN (Standard / Option) STD
    Compliant regulation IEEE802.11 a/b/g/n/ac
    Access mode Infrastructure mode, Software AP mode
    Security WEP, WPA / WPA2-mixed PSK, WPA / WPA2-mixed EAP, WPA2-PSK, WPA2-EAP, WPA2 / WPA3-mixed PSK / SAE, WPA3 SAE, WPA2 / WPA3-mixed EAP, WPA3 EAP

    Toner Yield

    Black (pages at 5% coverage) 40000
    Cyan (pages at 5% coverage) 24000
    Magenta (pages at 5% coverage) 24000
    Yellow (pages at 5% coverage) 24000
    Software/Drivers

    Drivers

    SAP Device Type, version 1909a

    SAP Device Type for SAP R/3, for AR/MX/BP Series, version 1909a, production run date 27/09/2019, English language

    08.09.2021

    PCFax Driver for Windows, version 2209a, WIN32/64

    PCFax Driver for Windows 8.1/10/8.1 x64/10 x64/11, Windows Server 2012/2012 R2/2016/2019/2022, version 2209a, production run date 29/08/2022, English language

    02.09.2022

    PCL6/PS/PPD Printer-Driver for Windows, version 2209b, WIN 32

    PCL6/Postscript/PPD Printer-Driver for Windows 8.1/10 with WHQL, version 2209b, production run date 29/08/2022, English language

    02.09.2022

    PS/PPD Printer-Driver for MacOS X 10.10-10.14

    PostscriptPPD Printer-Driver for MacOS X 10.10-10.14, version 2209a, production run date 29/08/2022, Multilanguage

    02.09.2022

    PCL6/PS/PPD Printer-Driver for Windows, version 2209b, WIN 64

    PCL6/Postscript/PPD Printer-Driver for Windows 8.1 x64/10 x64/11, Windows Server 2012/2012 R2/2016/2019/2022 with WHQL, version 2209b, production run date 29/08/2022, English language

    02.09.2022

    PS/PPD Printer-Driver for MacOS X 10.15/11/12

    PostscriptPPD Printer-Driver for MacOS X 10.15/11/12, version 2209a, production run date 29/08/2022, Multilanguage

    02.09.2022

    TWAIN Scanner-Driver for Windows, version 2209b, WIN32/64

    TWAIN Scanner-Driver for Windows 8.1/10/8.1 x64/10 x64/11, Windows Server 2012/2012 R2/2016/2019/2022 with WHQL, version 2209b, production run date 29/08/2022, English language

    02.09.2022

    Software

    Synappx Go

    Synappx Go as embedded Sharp OSA application for Synappx Go operations with MFP’s locked with native authentication or PaperCut MF, for MFPs that support Sharp OSA 6.0 or later, version 1.0.0, production run date 15/06/2022, European languages

    17.06.2022

    Sharp Monitor for Windows, version 2012a, WIN 32/64

    Sharp Monitor for Windows 8.1/10/8.1 x64/10 x64/11, Windows Server 2012 R2/2016/2019/2022, version 2012a, production run date 20/01/2021, European languages

    02.09.2022

    Sharp Remote Device Manager Version 2.14.0.15848.2

    Sharp Remote Device Manager for Windows Server 2012/2012 R2 SP1/2016/2019/2022, version 2.14.0.15848.2, production run date 31/05/2022, European languages

    01.07.2022

    Network Scanner Tool Lite Ver.2.0

    Network Scanner Tool Lite for Windows 8.1/8.1 x64/10/10 x64/11, version 2.0.11.14, production run date 30/06/2022, European languages

    02.09.2022

    Synappx Go No Login

    Synappx Go No Login as embedded Sharp OSA application for touchless operation with Synappx Go, for MFPs that support Sharp OSA 6.0 or later, version 1.0.62.0, production run date 15/06/2022, European languages

    17.06.2022

    Box Connector

    Box Connector as embedded Sharp OSA application to connect the MFP to your Box account, for MFPs that support Sharp OSA 6.0 or later, version 1.2.17, production run date 15/06/2022, European languages

    17.06.2022

    Teams Connector

    Teams Connector as embedded Sharp OSA application to connect the MFP to your Teams account, for MFPs that support Sharp OSA 6.0 or later, version 1.1.2, production run date 15/06/2022, European languages

    14.07.2022

    Dropbox Connector

    Dropbox Connector as embedded Sharp OSA application to connect the MFP to your Dropbox account, for MFPs that support Sharp OSA 6.0 or later, version 1.2.17, production run date 15/06/2022, European languages

    17.06.2022

    EasyUI for Windows, version 2209a, WIN 32/64

    EasyUI for Windows 8.1/10/8.1 x64/10 x64/11, Windows Server 2012/2012 R2/2016/2019/2022, version 2209a, production run date 29/08/2022, European languages

    02.09.2022

    Documents

    Brochure

    MFP A3 Range Brochure

    MFP A3 Range Brochure

    13.09.2022

    Datasheet

    Datasheet BP70C65 GB

    02.08.2022

    Document of Conformity

    UKCA DoC

    BP-70C55, BP-70C65

    17.06.2022

    CE DoC

    BP-70C55, BP-70C65

    16.06.2022

    Environment

    ECO Declaration

    ECO Declaration, BP-70C65

    17.08.2022

    Operational manuals

    Operation Manual, AirPrint Guide

    Operation Manual, AirPrint Guide, English Language

    15.06.2022

    Operation Manual, Cloud Connect Guide

    Operation Manual, Cloud Connect Guide, English Language

    15.06.2022

    Operation Manual, Dropbox Connector Guide

    Operation Manual, Dropbox Connector Guide, English Language

    15.06.2022

    Operation Manual, Teams Connector Guide

    Operation Manual, Teams Connector Guide, English Language

    15.06.2022

    Operation Manual, Application Portal Guide

    Operation Manual, Application Portal Guide, English Language

    14.06.2022

    Operation Manual, Data Security Kit Notice

    Operation Manual, Data Security Kit Notice, English Language

    17.08.2022

    Operation Manual, Quick Start Guide

    Operation Manual, Quick Start Guide, English Language

    14.06.2022

    Operation Manual, Box Connector Guide

    Operation Manual, Box Connector Guide, English Language

    15.06.2022

    Operation Manual, Software Setup Guide

    Operation Manual, Software Setup Guide, English Language

    14.06.2022

    Operation Manual, 2-line LAN Expansion Guide

    Operation Manual, 2-line LAN Expansion Guide, English Language

    15.06.2022

    Operation Manual, Operation Guide Data Security Kit

    Operation Manual, Operation Guide Data Security Kit, English Language

    15.06.2022

    Operation Manual, User’s Manual

    Operation Manual, User’s Manual, English Language

    14.06.2022
