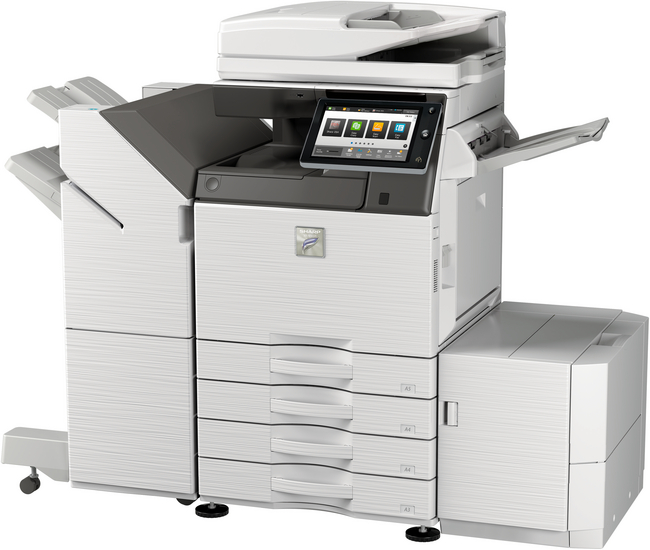

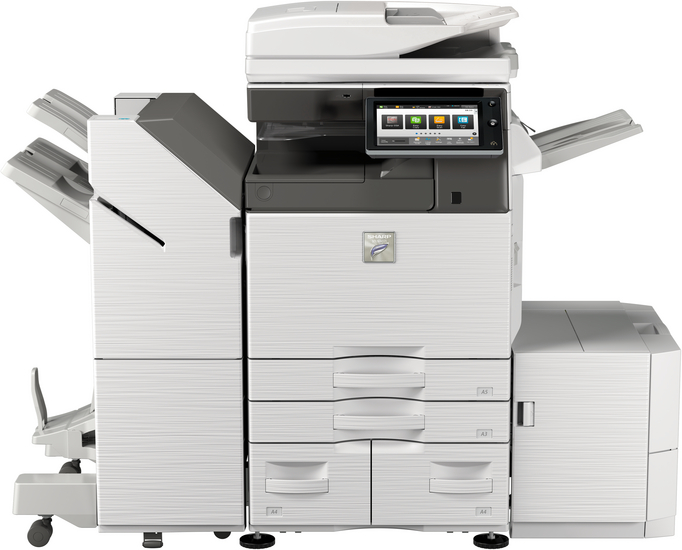

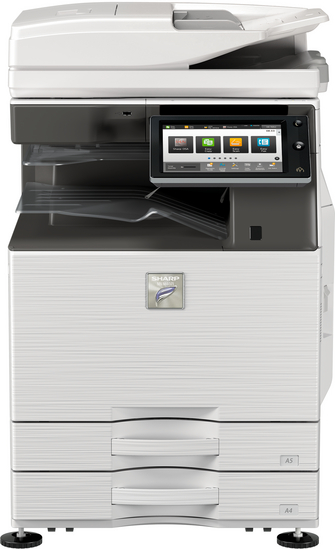

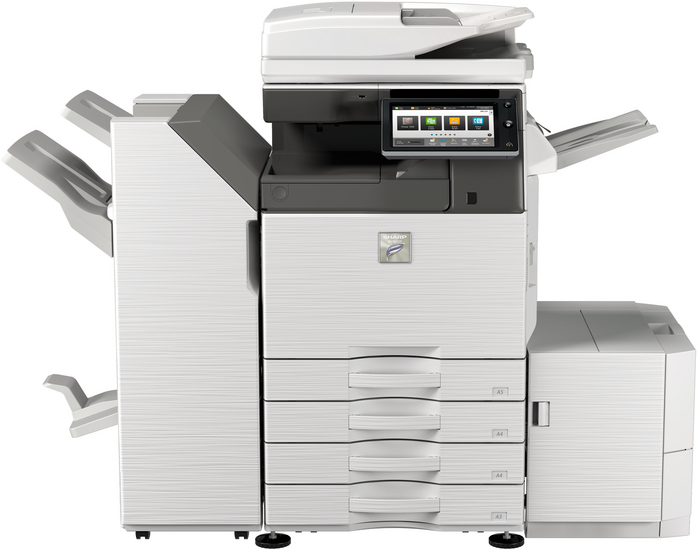

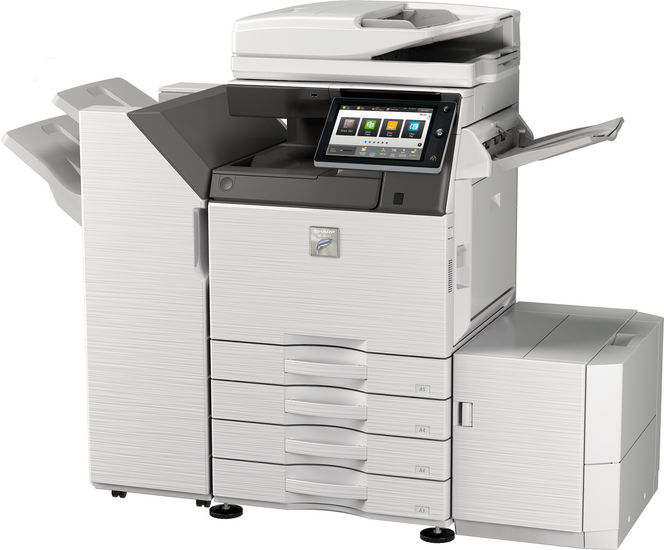

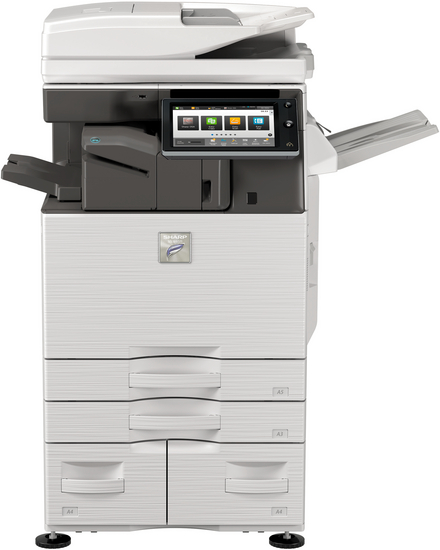

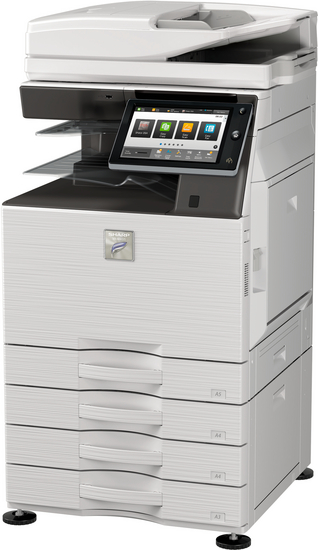

Sharp MX-M3071S

The MX-M3071S A3 black & white device is an enhanced solution centric MFP that optimises workgroup productivity anytime, anywhere. Single-Sign-On cloud connectivity; mobile connectivity via WiFi, NFC or QR Code; USB direct printing of MS Office files; and OCR for scan to searchable PDF/Office provide flexible workflows. Support for a secondary LAN (optional) provides simultaneous support for two networks, including a combination of wireless and wired networks. The standard Print Release function allows users to send and store documents to a main MFP, which acts as a server, allowing print jobs to be securely released at up to five connected, network-ready devices.

Key features

  • Print, Copy, Scan, Fax, File
  • Pages per minute: 30 B/W
  • Paper capacity: Std 650 Max 6300 sheets
  • Advanced data protection and access control with SSL validation and whitelisting
  • Support for a secondary LAN (optional) provides simultaneous support for two networks
  • Single sign-on brings easy access to public cloud storage services
  • Short warm up time and motion sensor ensure that the device is always ready for immediate operation
  • OCR allows users to convert scanned documents into editable MS Office files (pptx, xlsx, docx) and searchable PDFs
Description

Description

    The MX-M3071S A3 black & white device is an enhanced solution centric MFP that optimises workgroup productivity anytime, anywhere. Single-Sign-On cloud connectivity; mobile connectivity via WiFi, NFC or QR Code; USB direct printing of MS Office files; and OCR for scan to searchable PDF/Office provide flexible workflows. Support for a secondary LAN (optional) provides simultaneous support for two networks, including a combination of wireless and wired networks. The standard Print Release function allows users to send and store documents to a main MFP, which acts as a server, allowing print jobs to be securely released at up to five connected, network-ready devices.
    It comes with a range of robust security features to keep your data and network safe including access control, data encryption and S/MIME as well as a self-healing firmware system, SSL certificate validation and a programme execution white list.

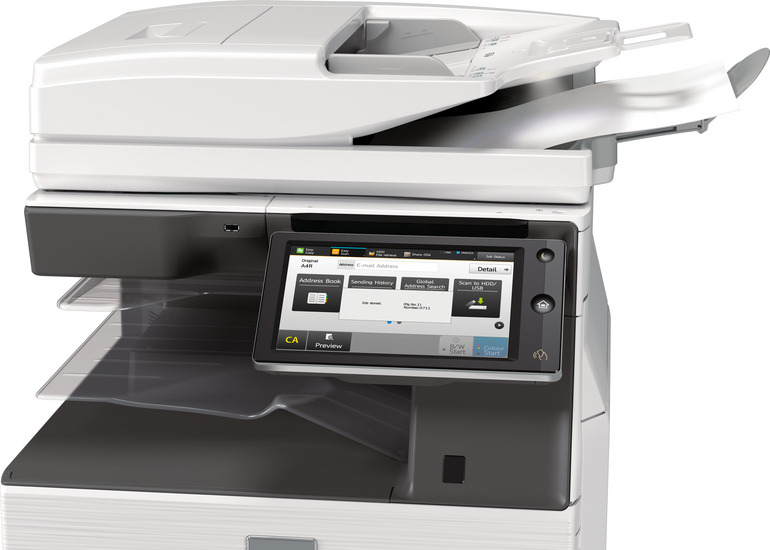

    Advanced technological features include a motion sensor that detects approaching users so that the MFP wakes from Sleep mode, ready for immediate operation and communication lamps that show the MFP status. A tiltable 10.1”colour LCD touchscreen provides the option to drag and drop favourite icons for simple customisation of the home page and easy access to a quick-help manual.

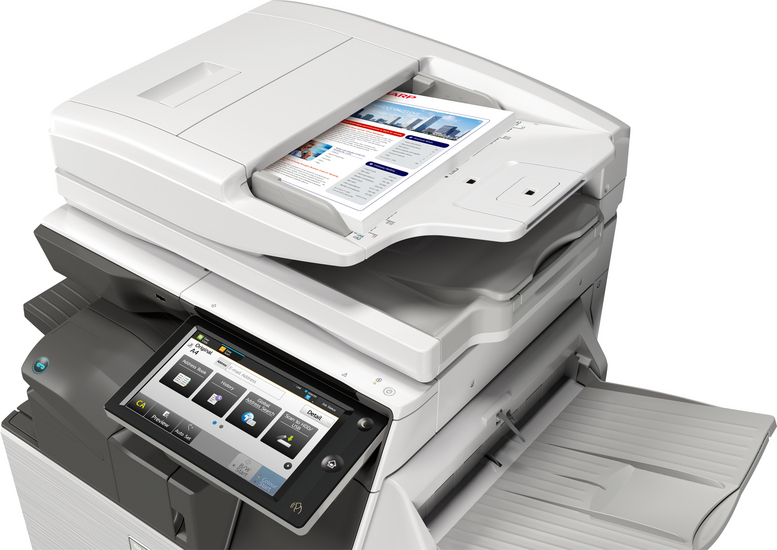

    Print and copy speeds of up to 30 ppm in black & white a built-in 150-sheet Duplex Single Pass Feeder with a scan speed of up to 220 ipm (two sided, colour and black & white) and the ability to replace paper without pausing the print or copy job all help to boost efficiency and productivity. There’s even an LED to remind users to remove original documents, helping to keep documents secure. A maximum paper capacity of 6,300 sheets and wide media range up to A3W and 300 gsm enable this device to handle your varied output requirements with ease. A variety of finishing options such as saddle stitching, manual and stapleless stapling add further versatility. The MX-M3071S also provides page after page of consistently superb 1,200 x 1,200 dpi image quality output.
    The Sharp Application Portal makes the MFP much more adaptable by providing software updates and cloud connector apps that enable agile working.
    The MX-M3071S uses Sharp’s latest energy-saving technology. A rapid warm up time, low power consumption and low TEC value all aim to save money and support your environmental objectives.

    Specifications

    General

    Engine speed B/W ppm (A4) 30
    Engine speed B/W ppm (A3) 15
    Paper size: Min.-Max. A5R – A3W
    Paper weight (g/m2) 55 – 300
    Paper capacity:Std (sheets) 650
    Paper capacity: Max. (sheets) 6300
    Warm Up Time (sec.) 14
    Memory general min/max (GB) 5
    Harddisk STD
    Harddisk capacity (GB) 500
    Duplex STD
    Power requirements – rated local AC voltage (Hz) 220 – 240V, 50/60Hz
    Power consumption (kW) 1,84
    Dimensions (mm) 616 x 660 x 838
    Weight (kg) 72

    Copier

    Original paper size (Max.) A3
    First copy out time B/W (sec.) 4,5
    E-sort Std yes
    E-sort Opt. no
    Continuous copy (Max. copies) 9999
    Resolution Scan B/W (dpi) 600 x 600, 600 x 400
    Resolution Scan Colour (dpi) 600 x 600
    Resolution Print (dpi) 1200 x 1200
    Gradation (equivalent levels) – B/W 2
    Gradation (equivalent levels) – Colour 256
    Zoom range (%) 25 – 400
    Preset copy ratios 10

    Document Feeder

    Original capacity (sheets) 150

    Scanner

    Network Scanner (Standard / Option) STD
    Scan method Push scan and Pull scan yes
    Resolution push scan (dpi) 100, 150, 200, 300, 400, 600
    Resolution pull scan (dpi) 75, 100, 150, 200, 300, 400, 600, 50 – 9600
    File formats TIFF, PDF, PDF/A-1a, PDF/A-1b, encrypted PDF, compact PDF, JPEG, XPS, searchable PDF, Microsoft Office (pptx, xlsx, docx), text (TXT), rich text (RTF)
    Scan destinations Desktop yes
    Scan destination FTP, Email yes
    Scan destination Network folder yes

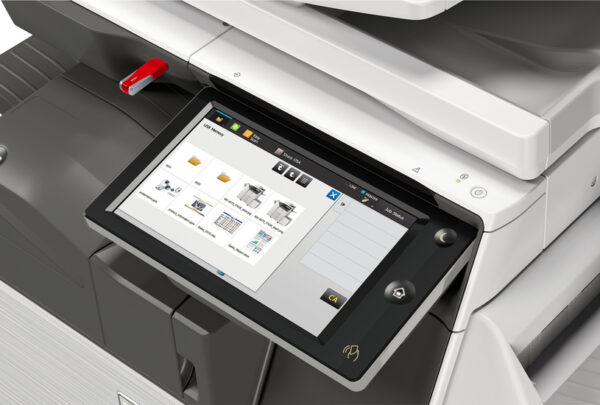

    Scan destination USB memory yes

    Document filing

    Document filing (Standard / Option) STD
    Document filing capacity- main and custom folders (pages) 20.000
    Document filing capacity- quick file folder (pages) 10.000
    Stored jobs Copy, print, scan, fax transmission
    Storage folders Quick file folder, main folder, custom folder (max. 1000)
    Confidential storage yes

    Printer

    Resolution (dpi) 1200 x 1200, 600 x 600, 9,600 x 600
    Network Printer (Standard / Option) STD Ethernet and WiFi 802.11 b/g/n
    Interface Std/Opt STD USB 2.0, 10Base-T/100Base-TX/1000Base-T OPT Secondary LAN support
    Supported OS Standard Windows 7, 8.1, 10, 11. Windows Server 2008, 2008R2, 2012, 2012R2, 2016, 2019. Mac OS X 10.9, 10.10, 10.11, 10.12, 10.13, 10.14, 10.15, 11
    Network protocols TCP/IP (IPv4, IPv6), WEP, WPA/WPA2-mixed PSK, WPA/WPA2-mixed EAP, WPA2 PSK, WPA2 EAP
    Printing protocols LPR, Raw TCP (port 9100), POP3 (e-mail printing), HTTP, FTP for downloading print files, IPP, SMB, WSD
    PDL Std/Opt STD PCL 6 emulation, Genuine Adobe PostScript 3
    Available fonts 80 (PCL), 139 (Genuine Adobe PostScript 3)

    Fax

    Fax (Standard / Option) OPT
    Compression method MH/MR/MMR/JBIG
    Communication protocol Super G3
    Transmission time (sec) 2
    Modem Speed (bps) 33.600 – 2.400
    Transmission resolution 203,2 x 97,8, 406,4 x 391
    Document Size (Min) A5
    Document Size (Max) A3
    Memory (GB) 1
    Grey Scale levels 256
    Dial Registration; rapid/speed dial 2000
    Broadcast Transmission (max. destinations) 500

    Finishing

    Output Capacity Max. 500 – 3000
    Staple Capacity (sheets) Max. 65
    Saddle Stitch OPT
    Off-set shifting STD
    Hole punch OPT

    Wireless LAN

    Wireless LAN (Standard / Option) OPT
    Compliant regulation IEEE802.11 b/g/n
    Access mode Infrastructure mode, Software AP mode
    Security WEP, WPA/WPA2-mixed PSK, WPA/WPA2-mixed EAP, WPA2 PSK, WPA2 EAP

    Toner Yield

    Black (pages at 6% coverage) 40000
    Software/Drivers

    Drivers

    SAP Device Type, version 1909a

    SAP Device Type for SAP R/3, for AR/MX/BP Series, version 1909a, production run date 27/09/2019, English language

    08.09.2021

    PS/PPD Printer-Driver for MacOS X 10.15/11/12

    PostscriptPPD Printer-Driver for MacOS X 10.15/11/12, version 2209a, production run date 29/08/2022, Multilanguage

    02.09.2022

    PS/PPD driver for Linux, version 1.0,

    PS/PPD driver for Linux, version 1.0, for MX-M3071S, MX-M3571S, MX-M4071S, MX-M5071S, MX-M6071S, production run date 02/12/2021, English language

    11.12.2021

    IFAX Expansion Tool for Windows, Version 0611a

    IFAX Expansion Tool for Windows 7/8.1/10/7 x64/8.1 x64/10 x64/11, Windows Server 2008/2008 x64/2008 R2/2012/2012 R2/ 2016/ 2019/2022 version 0611a, production run date 17/10/2018, European languages

    02.09.2022

    PS/PPD Printer-Driver for MacOS X 10.6-10.7

    PostscriptPPD Printer-Driver for MacOS X 10.6-10.7, version 2111a, production run date 02/12/2021, Multilanguage

    11.12.2021

    TWAIN Scanner-Driver for Windows, version 2202a, WIN32/64

    TWAIN Scanner-Driver for Windows 8.1/10/8.1 x64/10 x64/11, Windows Server 2012/2012 R2/2016/2019/2022 with WHQL, version 2202a, production run date 23/03/2022, English language

    05.08.2022

    PCFax Driver for Windows, version 2201a, WIN32/64

    PCFax Driver for Windows 8.1/10/8.1 x64/10 x64/11, Windows Server 2012/2012 R2/2016/2019/2022, version 2201a, production run date 23/03/2022, English language

    05.08.2022

    PCL6/PS/PPD Printer-Driver for Windows, version 2204a, WIN 64

    PCL6/Postscript/PPD Printer-Driver for Windows 8.1 x64/10 x64/11, Windows Server 2012/2012 R2/2016/2019/2022 with WHQL, version 2204a, production run date 18/04/2022, English language

    05.08.2022

    PCL6/PS/PPD Printer-Driver for Windows, version 2204a, WIN 32

    PCL6/Postscript/PPD Printer-Driver for Windows 8.1/10 with WHQL, version 2204a, production run date 18/04/2022, English language

    27.04.2022

    PS/PPD Printer-Driver for MacOS X 10.10-10.14

    PostscriptPPD Printer-Driver for MacOS X 10.10-10.14, version 2209a, production run date 29/08/2022, Multilanguage

    02.09.2022

    Software

    Sharp Remote Device Manager Version 2.14.0.15848.2

    Sharp Remote Device Manager for Windows Server 2012/2012 R2 SP1/2016/2019/2022, version 2.14.0.15848.2, production run date 31/05/2022, European languages

    01.07.2022

    SharePointOnline Connector

    SharePointOnline Connector as embedded Sharp OSA application to connect the MFP to your SharePointOnline account (for CR4.5 models only, requires MX-AMX2), version 1.1.3, production run date 25/11/2020, European languages

    21.04.2022

    Network Scanner Tool Lite Ver.2.0

    Network Scanner Tool Lite for Windows 8.1/8.1 x64/10/10 x64/11, version 2.0.11.14, production run date 30/06/2022, European languages

    02.09.2022

    Gmail Connector

    Gmail Connector as embedded Sharp OSA application to connect the MFP to your Gmail account, version 1.0.25, production run date 19/10/2021, European languages

    21.04.2022

    Sharp Monitor for Windows, version 2012a, WIN 32/64

    Sharp Monitor for Windows 8.1/10/8.1 x64/10 x64/11, Windows Server 2012 R2/2016/2019/2022, version 2012a, production run date 20/01/2021, European languages

    02.09.2022

    Box Connector

    Box Connector as embedded Sharp OSA application to connect the MFP to your Box account (for CR4.5 models only, requires MX-AMX2), version 1.1.2, production run date 25/11/2020, European languages

    21.04.2022

    GoogleDrive Connector

    GoogleDrive Connector as embedded Sharp OSA application to connect the MFP to your Google account (for CR4.5 models only, requires MX-AMX2), version 1.1.3, production run date 25/11/2020, European languages

    21.04.2022

    Teams Connector

    Teams Connector as embedded Sharp OSA application to connect the MFP to your Teams account, version 1.1.1.0, production run date 24/06/2022, European languages

    27.06.2022

    Dropbox Connector

    Dropbox Connector as embedded Sharp OSA application to connect the MFP to your Dropbox account, version 1.1.2.2, production run date 15/04/2021, European languages

    21.04.2022

    EasyUI for Windows, version 2209a, WIN 32/64

    EasyUI for Windows 8.1/10/8.1 x64/10 x64/11, Windows Server 2012/2012 R2/2016/2019/2022, version 2209a, production run date 29/08/2022, European languages

    02.09.2022

    OneDrive Connector

    OneDrive Connector as embedded Sharp OSA application to connect the MFP to your OneDrive account (for CR4.5 models only, requires MX-AMX2), version 1.1.3, production run date 25/11/2020, European languages

    21.04.2022

    Documents

    Datasheet

    Datasheet MXM3071S GB

    26.07.2022

    Environment

    ECO Declaration

    ECO Declaration, MX-M3071S

    07.07.2022

    Operational manuals

    Operation Manual, Software Setup Guide

    Operation Manual, Software Setup Guide, English Language

    10.11.2021

    Operation Manual, User’s Manual

    Operation Manual, User’s Manual, English Language

    10.11.2021

    Operation Manual, Touch Panel Operation

    Operation Manual, Touch Panel Operation, English Language

    10.11.2021

    Operation Manual, Web Page Settings

    Operation Manual, Web Page Settings, English Language

    10.11.2021

    Operation Manual, 2-line LAN Expansion Guide

    Operation Manual, 2-line LAN Expansion Guide for models with this feature, English Language

    15.02.2022

    Operation Manual, Quick Start Guide

    Operation Manual, Quick Start Guide, English Language

    10.11.2021

    Operation Manual, Print Release Guide

    Operation Manual, Print Release Guide, English Language

    10.11.2021

    Operation Manual, Address Book Registration

    Operation Manual, Address Book Registration, English Language

    10.11.2021

    Operation Manual, AirPrint Guide

    Operation Manual, AirPrint Guide, English Language

    10.11.2021

    Operation Manual, Box Connector Guide

    Operation Manual, Box Connector Guide for models with this feature, English Language

    15.02.2022

    Operation Manual, Dropbox Connector Guide

    Operation Manual, Dropbox Connector Guide for models with this feature, English Language

    15.02.2022

    Operation Manual, Cloud Connect Guide

    Operation Manual, Cloud Connect Guide, English Language

    10.11.2021

    Operation Manual, Troubleshooting

    Operation Manual, Troubleshooting, English Language

    10.11.2021
